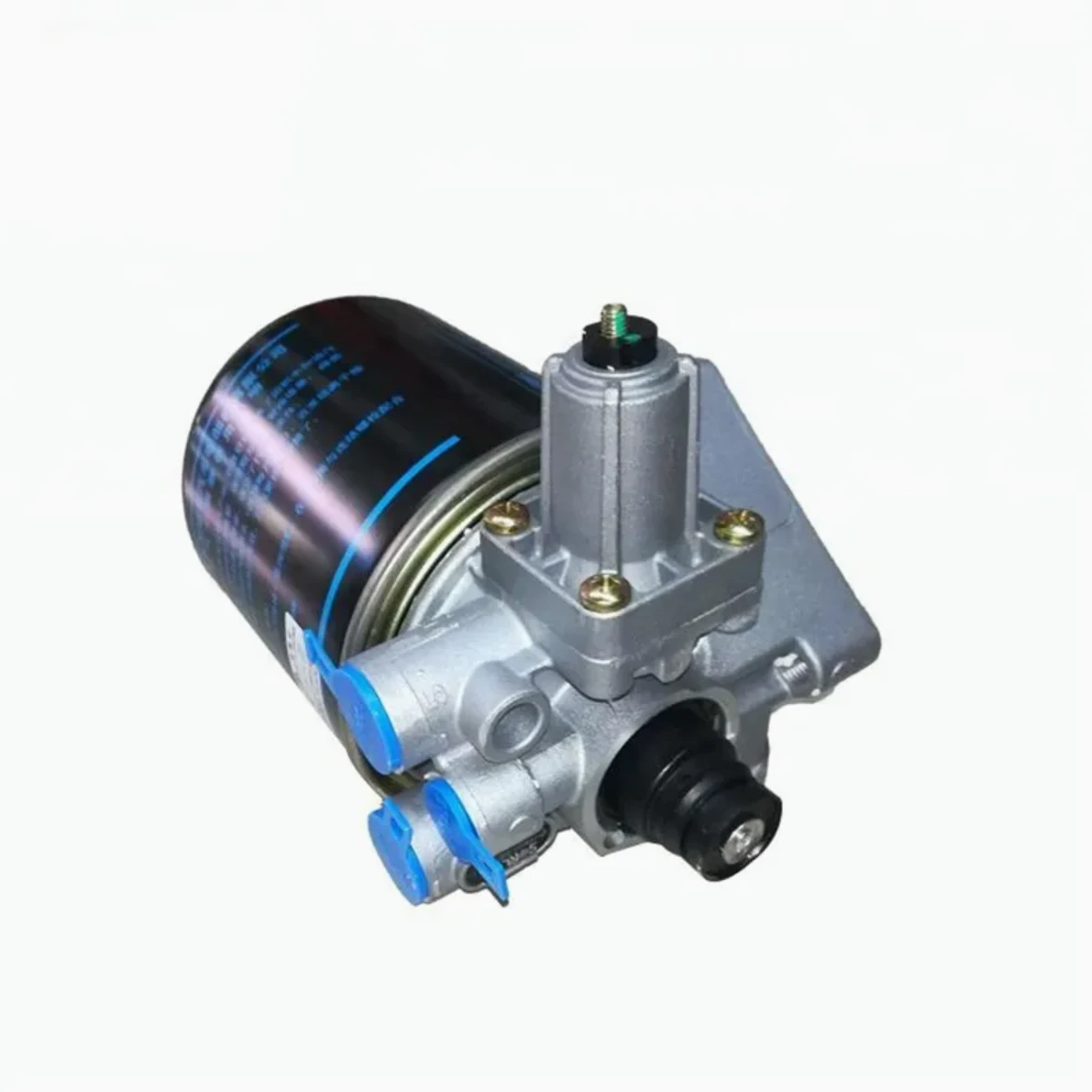

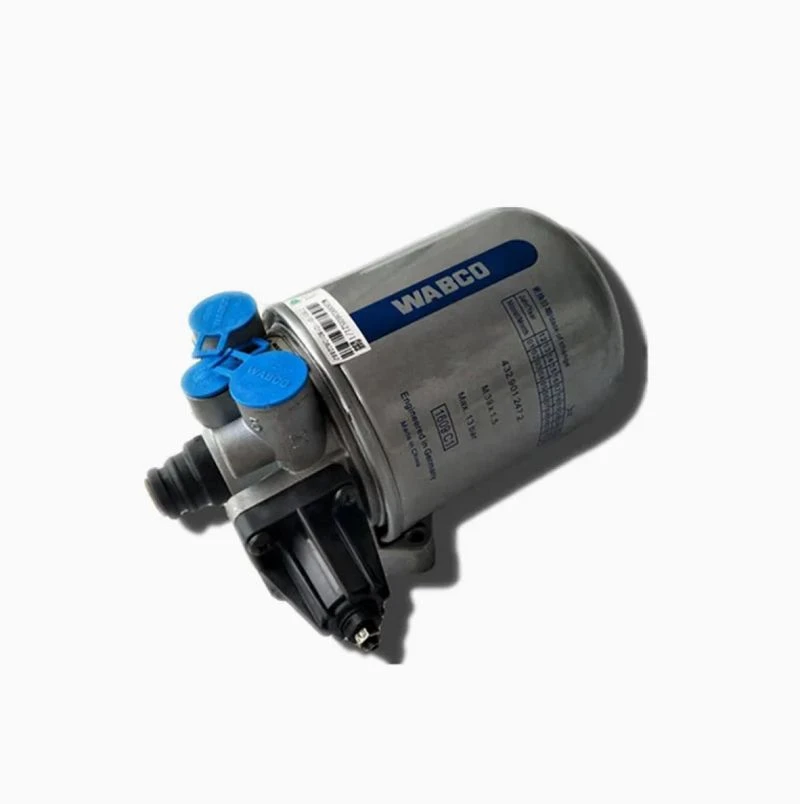

1)Working principle of SINOTRUK WABCO WG9000360521:
The role of the air dryer WG9000360521 is mainly to remove moisture, oil droplets and other impurities in the compressed air, play the role of filtering the air, so that the air entering the pipeline of the heavy truck is dry and clean, and the brake system can operate normally.
The working principle of the dryer assembly is that when the vehicle inhales air, the unfiltered air passes through the dryer assembly, and the molecular sieve in the dryer can effectively adsorb impurities and water.
2).Structure of Sinotruk HOWO heavy truck parts WABCO WG9000360521:
a.Air intake adopts threaded interface and is equipped with a built-in filter screen, used for drawing in normal air.
b.Pressure regulator controls the air pressure of intake, and its core component is a combination of rubber diaphragm and stainless steel spring.
c.Molecular sieve, the molecular sieve is equipped with a heating element inside to maintain at 120 degrees to achieve the purpose of drying air and oil droplets.
d.Exhaust port, below the exhaust port is a muffler cavity, which is equipped with porous sound-absorbing materials to meet the vehicle noise reduction standards.
3).Heavy truck brake system WABCO WG9000360521 Common faults:
a.Air leakage, due to the aging of the bottom installation sealing rubber ring, or the rubber ring is not installed in place, resulting in air leakage, which accelerates the consumption of molecular sieve and reduces the service life of the air dryer.
b.No adsorption effect, the market of poor quality air dryer assembly, the use of low-cost molecular sieve, no adsorption lead to failure of the brake system
c.The dryer burst, the inferior air dryer assembly, the set pressure does not reach the standard value, resulting in excessive pressure during driving, resulting in the dryer burst damage, affecting the service brake system.
Production details
|
Price |
Negotiable |
|
Payment term |
TT, LC |
|
Delivery date |
Negotiable |
|
Packing |
export standard |
|
Market |
Middle East/ Africa/Asia/South America/Europe/North America |
|
Warranty |
1 year |
|
MOQ |
1 set |
Our Advantages
1). Fast installation
2). Smooth operating
3). Strict quality management systemes
4). Prompt delivery
5). High quality products
Our Services
1).Provide the technical design and solutions;
2).New plant construction guidance;
3).Designing and manufacturing of non-standard equipment;
4).Professional technical training and guidance on site according to the contract;
5).Supply accessories at any time;
6).Tele-technical consulting and services;
7).Other special technical service according to client's requirements.
Quality Assurance
1). Checking raw material before producing.
2). Checking one by one before the assembling
3). Checking one by one during the production
4). Have 100% inspection before the delivery.
Our history
1).2010 Zhongyi machinery Co.,Ltd. Founded, with main products of spare parts for concrete pumps and concrete mixer trucks.
2).2011 Zhongyi machinery started to cooperate with ACM located in Italy, our products entered EU market.
3).2016 start cooperating with TRI who is famous distributor in middle East countries, we provide the all kind of parts. And meanwhile we started cooperated with Zoomlion customer in South east Asia.
4).2019 we purchased one factory for manufacture the casting products, and began to cooperate with the biggest pump part distributor in UAE.
5).2023 our company has passed the ISO quality system registration, and has obtained ISO 9001:2008 certificate.
6).2024 our set up our oversea branches in Oman Muscat.
Our factory and warehouses
Our Exhibitions
FAQ

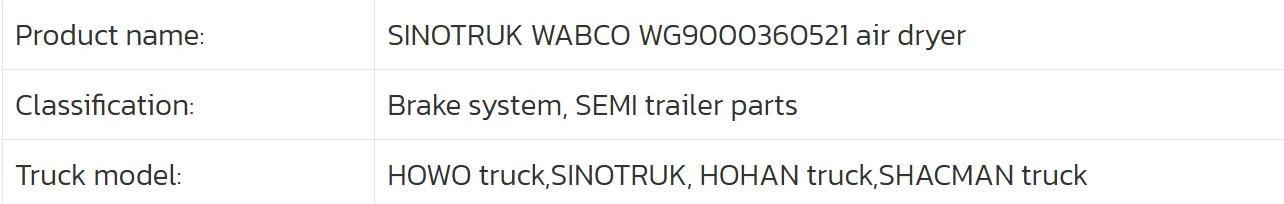

Q: What vehicles and brands is this air dryer compatible with?
A: Compatible models:It is suitable for SINOTRUK HOWO, HOHAN, SHACMAN trucks, and falls under the category of brake system and semi-trailer parts.
Q: How does this air dryer work to protect the braking system?
A: Working principle:When the vehicle inhales air, the un-filtered air passes through the dryer assembly. The internal molecular sieve effectively adsorbs impurities and water, ensuring that the air entering the pipeline is dry and clean, allowing the brake system to operate normally.
Q: What are the common faults of this product?
A: Common faults:
Air leakage: Caused by aging of the bottom installation sealing rubber ring or improper installation.
No adsorption effect: Using poor-quality or low-cost molecular sieves in the market leads to failure.
Dryer burst: Inferior products do not reach the standard pressure value, causing excessive pressure during driving and damaging the unit.
Q: How can I distinguish a high-quality air dryer from a inferior one?
A: A high-quality air dryer uses premium molecular sieves for effective moisture absorption and is tested to withstand standard pressure without bursting. In contrast, inferior products often use cheap materials, lack proper adsorption capability, and have unstable pressure settings, which can lead to brake failure or bursting. Always check for compliance with national standards and avoid extremely low-priced options that compromise safety.
