Product Parameter
|
Product Name |
oil filter |
|
Model |
1000424655 |
|
Application |
Weichai Truck |
|
Brand |
Local |
|
Country of Origin |
China |
Product Feature
1).Famous brand, Easy to install.
2).High quality materials to extend the service life of hart parts
3).The operation is easy and can improve the working efficiency of the concrete pumps.
Production details
|
Price |
Negotiable |
|
Payment term |
TT, LC |
|
Delivery date |
Negotiable |
|
Packing |
export standard |
|
Market |
Middle East/ Africa/Asia/South America/Europe/North America |
|
Warranty |
1 year |
|
MOQ |
1 set |
Our Advantages
1). Fast installation
2). Smooth operating
3). Strict quality management systemes
4). Prompt delivery
5). High quality products
Our Services
1).Provide the technical design and solutions;
2).New plant construction guidance;
3).Designing and manufacturing of non-standard equipment;
4).Professional technical training and guidance on site according to the contract;
5).Supply accessories at any time;
6).Tele-technical consulting and services;
7).Other special technical service according to client's requirements.
Quality Assurance
1). Checking raw material before producing.
2). Checking one by one before the assembling
3). Checking one by one during the production
4). Have 100% inspection before the delivery.
Our history
1).2010 Zhongyi machinery Co.,Ltd. Founded, with main products of spare parts for concrete pumps and concrete mixer trucks.
2).2011 Zhongyi machinery started to cooperate with ACM located in Italy, our products entered EU market.
3).2016 start cooperating with TRI who is famous distributor in middle East countries, we provide the all kind of parts. And meanwhile we started cooperated with Zoomlion customer in South east Asia.
4).2019 we purchased one factory for manufacture the casting products, and began to cooperate with the biggest pump part distributor in UAE.
5).2023 our company has passed the ISO quality system registration, and has obtained ISO 9001:2008 certificate.
6).2024 our set up our oversea branches in Oman Muscat.
Our factory and warehouses
Our Exhibitions
FAQ

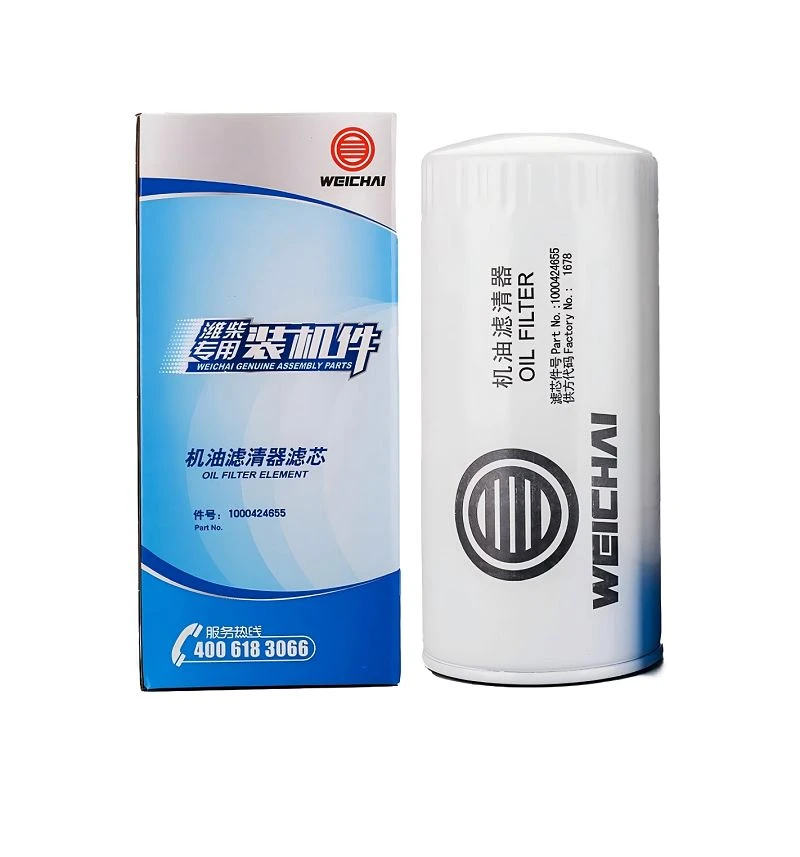

Q1: What engines and vehicles does the Weichai oil filter P/N 1000424655 fit?
A: The 1000424655 is a spin-on type oil filter designed for Weichai heavy-duty diesel engines, including the WD615, WD618, WP10, and WP12 series. It is widely used in Sinotruk (HOWO/Sitrak), Shacman Delong (F3000/M3000/X3000), Foton Auman, and FAW Jiefang trucks equipped with Weichai power. It also fits construction machinery like wheel loaders and excavators from brands such as LiuGong, SDLG, and XCMG that utilize these engines.
Q2: What are the key specifications and dimensions of this filter?
A: This is a standard spin-on oil filter. Key specifications include:
Overall Height: Approx. 205–213 mm
Outer Diameter: Approx. 93–96 mm
Thread Size: 1"-12 UNF
Gasket Diameter: ID ≈ 61 mm / OD ≈ 72 mm
Filtration: High-efficiency media with bypass and anti-drain back valves included.
Q3: Are there any interchangeable or cross-reference part numbers for 1000424655?
A: Yes, common cross-references include:
Weichai: 61000070005, 612600070506
Sinotruk: VG61000070005
Bengbu Jinxin: JX0818A, JX0818
Fleetguard: LF16327, LF3784
Mann: W 962
Baldwin: BT8860
Sakura: C4905
(Note: Always verify thread size and dimensions before installation.)
